It’s easy to get overwhelmed by all the new developments in self-defense technology these days. Options that represent cutting-edge features one day quickly become “standard equipment” the next. Take handgun-mounted optics. Not that long ago, having a red dot atop your pistol put you in some very rarefied air. However, pistols like the Hellcat and Hellcat Pro helped normalize the use of optics on defensive pistols to the point where it is downright common these days.
As a result, the notion that Moore’s Law of technological advancement applied to the self-defense realm has shifted from the expectation of rapid evolutionary advancement to a more nuanced approach of refinement and integration. The newest version of the Springfield Armory Echelon represents exactly that kind of approach. Rather than focusing exclusively on modularity, these models center on the integration of an exciting new pistol optic from respected optics manufacturer, Aimpoint.
The Cornerstones

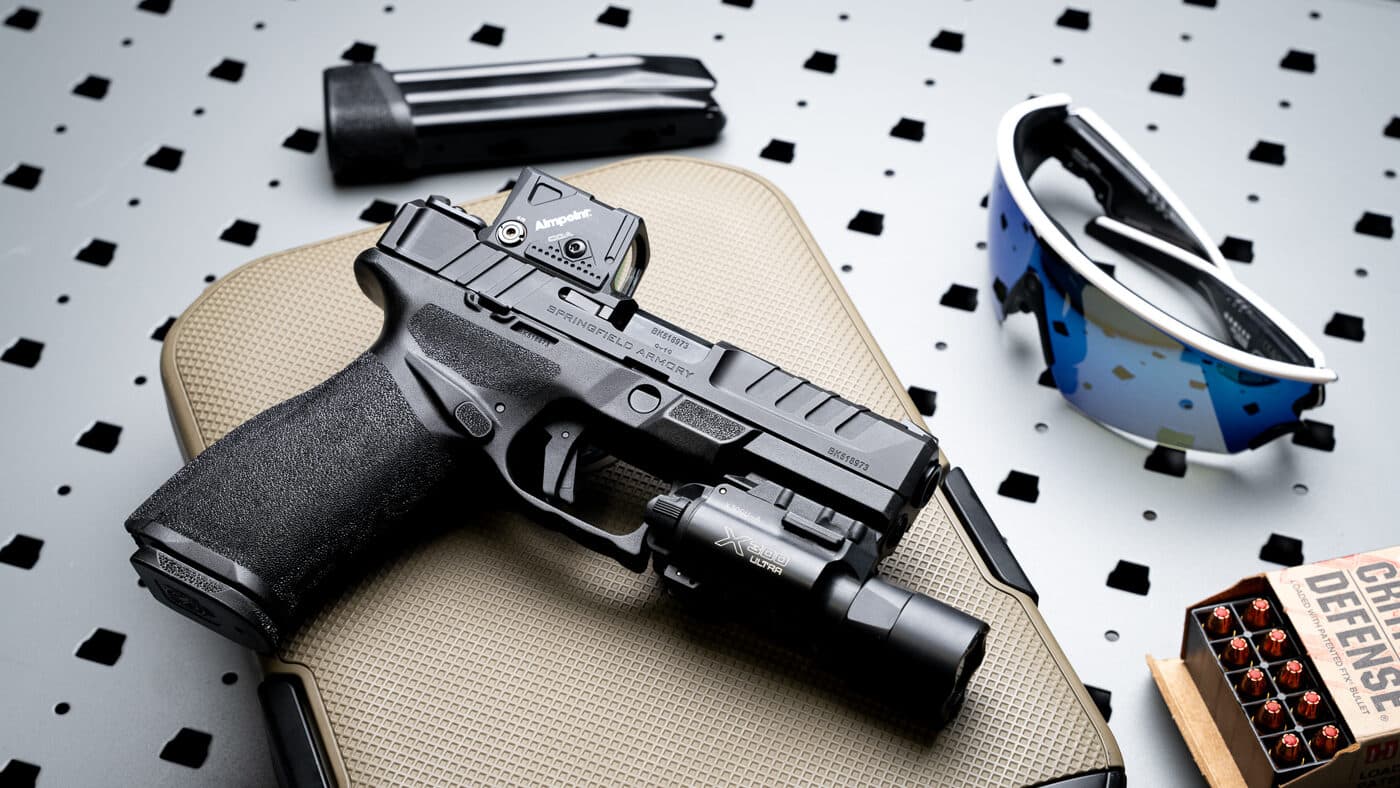

As part of the new Springfield Armory x Aimpoint COA family, Springfield Armory has partnered with Aimpoint to introduce a factory-configured Echelon that arrives equipped with the Aimpoint COA and a dedicated A-CUT interface milled directly into the slide. The result is a purpose-built carry and duty pistol designed for shooters who want a professional-grade optic system from the moment it leaves the box.
For those not familiar with the Aimpoint COA, it is a closed-emitter red dot optic designed for use on both duty- and CCW-style handguns. While red dots may be the new norm on handguns these days, the vast majority of them are “open-emitter” designs where there is the potential for dirt or moisture to impede the projection of the aiming dot. The COA takes another approach.
Designed for the maximum in durability, the COA is a “closed-emitter” design in which the projection mechanism is entirely enclosed, ensuring your aiming dot is not affected by environmental factors. While closed-emitter optics are not necessarily anything new, they have primarily been larger optics ideal for large duty-style handguns or long guns. The COA, conversely, is designed to be as compact as possible, opening it up to practical usage on a wider range of handgun types.
The new Springfield Armory x Aimpoint COA family takes full advantage of this, covering not only the currently available Echelon models we are considering today, but also select 1911 DS Prodigy and 1911 pistol models as the line evolves.
At its launch, the new Echelon COA line of pistols is made up of the 4.5F, 4.0FC and 4.0C models. The 4.5F is a full-size model with a 4.5” barrel that comes with a flush-fitting 17-round magazine and an extended 20-round magazine. The 4.0FC is a hybrid model with a proprietary full-size grip module and a compact slide assembly with a 4” barrel. It comes with a 17-round, flush-fitting magazine as well as a spare extended 20-round magazine. The 4.0C is a compact model with a 4” barrel and 15-round, flush-fitting magazine as well as an extended 18-round magazine.
Solid Footing
While the original Echelon gained widespread attention for its innovative Variable Interface System, which allows the pistol to direct-mount a wide range of popular optics, this new configuration takes a different approach. Instead of adapting to multiple footprints, this version of the pistol is engineered specifically for the Aimpoint COA optic.
The slides of the new Echelons feature the proprietary A-CUT interface, a mounting system developed to maximize durability while minimizing tolerance stacking. The optic installs into a full-length dovetail that integrates directly into the slide, secured by a front hook and a rear wedge-lock mechanism that also acts as the rear iron sight.
That design accomplishes two important things. First, it transfers lateral forces into the dovetail rather than relying primarily on mounting screws. Under recoil, the mounting system absorbs stress through the slide itself, reducing the load placed on fasteners and mounting interfaces.
Second, it eliminates intermediary mounting plates. Anyone who has installed pistol optics understands the benefits of reducing the number of parts involved, as well as the ability to mount the optic as low as possible. This system allows for an ultra-rigid and tough mount that also allows for co-witnessing the iron sights.
The result is a carry and duty pistol that arrives with a professional-grade optic system already installed and ready to use.
In Your Sights
For decades, Aimpoint has built a solid reputation for reliability. Their optics are trusted worldwide by military and law enforcement professionals as well as civilian shooters, and the philosophy that got them there is evident in the COA.
The optic features a crisp 3.5 MOA red dot that balances speed and precision extremely well. At defensive shooting distances, the dot is quick to acquire, yet it remains precise enough for deliberate shots when the situation demands it.
Battery life is another hallmark of Aimpoint optics, and the COA continues that tradition. Powered by a common (and included) single CR2032 battery, the optic delivers more than 50,000 hours of constant operation. That translates to more than five years of continuous use.
Live The Armory Life. The latest content straight to your inbox plus an automatic entry to each of our monthly gun giveaways!
For everyday carry users, that constant-on capability is significant. The optic can remain active around the clock, eliminating the need to activate the sight during a stressful encounter. That means one less step for the shooter when the pistol needs to be used. The COA features four night vision settings and eight daylight brightness levels, ensuring adaptability for low-light/specialty usage as well as bright outdoor environments.
As noted, one of the defining characteristics of the COA is its enclosed emitter design. In recognition that rain, dust, lint or debris can all interfere with an emitter or reflective lens, the COA features a fully enclosed system that seals the electronics from outside elements. The internal LED emitter remains protected regardless of the environmental conditions.
The housing itself is machined from high-strength 7075-T6 aluminum. The hardened front lens and sealed electronics allow the optic to remain operational in harsh environments, including submersion down to 25 meters. Despite its durability and generous 15mmx15mm lens, the optic weighs a mere 1.7 oz. Overall dimensions are a compact 1.8” length, 1.1” width and 1.2” height.
A very thoughtful feature is the quick-access battery compartment. Unlike many pistol optics, the battery can be replaced without having to remove the sight from the slide. That means no loss of zero during a battery change.
The Right Option
One of the aspects I have always appreciated about the Echelon platform is its dynamically modular approach to design, from its serialized Central Operating Group chassis to the aforementioned Variable Interface System for optics. The latter of those allows for seemingly limitless experimentation with optics on the pistol. That kind of flexibility is valuable.
At the same time, every so often, an optic arrives that feels less like an option and more like the “right” permanent choice for the pistol. The COA strikes me just that way.
I have spent a considerable amount of time behind the Aimpoint ACRO series, starting with the original P-1 and continuing through the current ACRO P-2. Those optics have found their way onto several platforms in my collection, including rifles, pistol caliber carbines and handguns. In every case, they have proven exceptionally reliable. In my experience, they have been extremely reliable, and I have yet to see one fail. However, the overall footprint was a little large for EDC on a handgun.
Remarkably, Aimpoint managed to maintain the same 15x15mm size of window from ACRO on the new, smaller COA. The result is a very streamlined sight that integrates cleanly with the slide profile of the Echelon. The width of the optic aligns closely with the pistol itself, which makes the idea of carrying a true duty-grade enclosed emitter optic far more practical.
As optics technology continues to advance, the advantages of a closed-emitter design become increasingly clear, particularly for defensive pistols where there is little margin for failure. For a pistol that may be carried daily, that kind of environmental resilience is a major advantage. The same can also be said for professional use where a pistol is sitting in a holster for days or weeks. Your equipment needs to be available and work 100% of the time when it’s needed.
That said, I still appreciate my ACRO P-2, and it remains one of my preferred optics for pistol caliber carbines and the like. The COA, however, feels purpose-built for handguns, and the addition of the A-CUT interface makes the system even more compelling.
As noted, with the A-CUT system, the COA sits lower and integrates directly into the slide itself. The result is a stronger interface and a sight height that allows proper co-witnessing with the Echelon’s iron sights. For me, integrated back-up sights are a must for an EDC pistol.
Hands-On
For my testing, I chose to go with the Echelon 4.0FC COA 9mm variant. I have been spending a good amount of time with the 4.0FC platform since its launch, and I thought this one would be a good choice for me for the COA variant testing. I like the combination of the full-size grip and capacity with the fast-shooting compact slide and 4” barrel.
On the range, the COA performs exactly the way I would expect from an Aimpoint. The glass is clear, the dot is crisp and the sight picture is easy to acquire quickly. Because the optic is more compact than earlier enclosed-emitter designs, there is less housing visible in the shooter’s peripheral vision. That subtle change makes the sight window feel more open and keeps the focus exactly where it belongs — on the target.
Because the A-CUT interface integrates directly into the slide, the optic sits extremely low relative to the bore. That lower profile provides several practical advantages. First, the pistol maintains a natural index that feels similar to traditional iron sights. Shooters transitioning from irons to a red dot often find the learning curve much shorter when the optic sits closer to the slide like this.
Second, the system allows co-witnessing with the factory iron sights. As noted, the Echelon arrives equipped with a blacked-out front sight paired with the COA dovetail rear blacked-out serrated iron sight. Together with the COA, they provide redundancy while still keeping the optic as the primary aiming system.
The trim housing design of the COA also contributes to situational awareness, allowing the shooter to perceive a wider field of view through the sight window. On the range, I was viewing the targets through the 4.0FC COA Echelon as well as an Echelon with an open-emitter dot on it. The field of view and peripheral view was nearly the same. That is impressive.
Conclusion
The new Springfield Armory x Aimpoint COA family of pistols — made up of these three Echelon variants at launch time, and later including select 1911 DS Prodigy and 1911 models — represents an outstanding opportunity for those who demand the most from their guns and their optics.
The 9mm Echelon has easily proven itself as a duty-grade pistol adaptable to a wide range of roles, with compact, hybrid and full-size models available. Similarly, Aimpoint is a brand renowned for its duty-grade bonafides in the optics world. Its reputation for quality and ruggedness ensures the new COA will carry on this tradition.
Combining these two gives users an amazing option. The pistol arrives as a complete package engineered around a specific professional-grade sight. No stress, no hassle. It’s ready to go the moment you pick it up. This represents a mounting solution that emphasizes strength and simplicity on a pistol you know will deliver.
Additionally, there are the economics to consider. With an MSRP of $1,119 for all three optic-equipped models of the Echelon, these bundled packages represent a significant value for the customer. Considering that the MSRP for the Aimpoint optic is $617 and comparable Echelon models have an MSRP starting at $710, the result is a savings of more than $200 for the purchaser.
For shooters interested in a fully integrated pistol optic system, the Echelon paired with the Aimpoint COA is certainly worth a very close look.
